HALOGEN | J Linear series |

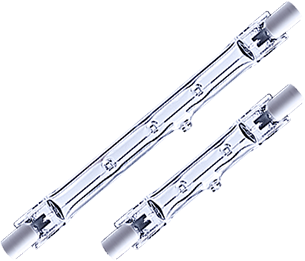

 ECO-J118mm / ECO-J78mm |

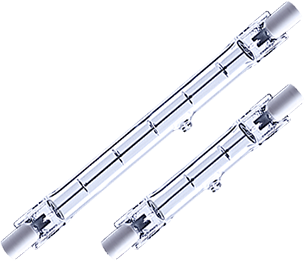

 J118mm / J78mm |
| Model No. | Energy Class |
Lumen | Wattage | Color Temperature |
Lifetime | CRI | Voltage | Beam Angle |
Dimmable | Base |
| ECO-J78 | C | 1380 lm | 80W | 2700K | 2000 hrs | ≥100 | 220~240V | 360° | Yes | R7S |
| 2220 lm | 120W | |||||||||
| ECO-J118 | C | 2220 lm | 120W | 2700K | 2000 hrs | ≥100 | 220~240V | 360° | Yes | R7S |
| 3090 lm | 160W | |||||||||
| 4650 lm | 230W | |||||||||
| 8550 lm | 400W | |||||||||
| J78 | C | 960 lm | 60W | 2700K | 2000 hrs | ≥100 | 220~240V | 360° | Yes | R7S |
| 1800 lm | 100W | |||||||||
| J118 | E | 4500 lm | 300W | 2700K | 2000 hrs | ≥100 | 220~240V | 360° | Yes | R7S |
| 8750 lm | 500W |
Dimension |
|||||||||||||||||||
| ECO-J78mm | ECO-J118mm | J78mm | J118mm | ||||||||||||||||
| Ø8 x 78 mm | Ø10 x 118 mm | Ø8 x 78 mm | Ø10 x 118 mm | ||||||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm / Test data based on 220-240V |
 |
