CoC LED Lamps | Tubular series |
 BTT CoC |
 T64 CoC |
 T64 CoC Gold |
 T25 CoC |
Non-Dimmable version |
|||||||||||||||||||
| Model No. | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base | |||||||

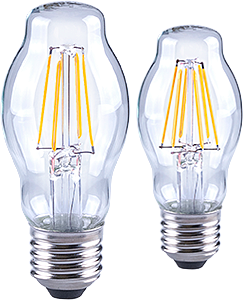

| BTT CoC | A++ | 470 lm | 4W | 4 pcs | 40W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E27 | |||||||
| 640 lm | 5W | 50W | |||||||||||||||||
| 810 lm | 6W | 6 pcs | 60W | ||||||||||||||||

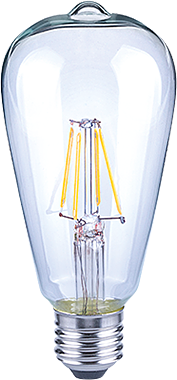

| ST64 CoC | A++ | 470 lm | 4W | 4 pcs | 40W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E27 | |||||||
| 640 lm | 5W | 50W | |||||||||||||||||
| 810 lm | 6W | 6 pcs | 60W | ||||||||||||||||

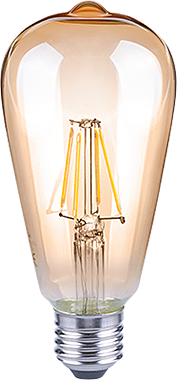

| ST64 CoC Gold | A+ | 400 lm | 4W | 4 pcs | 35W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E27 | |||||||
| 560 lm | 5W | 45W | |||||||||||||||||
| 720 lm | 6W | 6 pcs | 55W | ||||||||||||||||
| T25 CoC | A+ | 380 lm | 1W | 1 pcs | 14W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E14 | |||||||
| 520 lm | 2W | 2 pcs | 25W | ||||||||||||||||
Dimmable version |
|||||||||||||||||||
| Model No. | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base | |||||||
| BTT CoC | A++ | 450 lm | 4.5W | 4 pcs | 40W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | Yes | E26 | |||||||
| 810 lm | 6.5W | 6 pcs | 60W | ||||||||||||||||
| ST64 CoC | A++ | 450 lm | 4.5W | 4 pcs | 40W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | Yes | E26 | |||||||
| 810 lm | 6.5W | 6 pcs | 60W | ||||||||||||||||
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| BTT CoC | Ø46 x 105H mm | Ø46 x 105H mm | |||||||||||||||||
| ST64 CoC / ST64 CoC Gold | Ø64 x 145H mm | Ø64 x 145H mm | |||||||||||||||||
| T25 CoC | Ø25 x 84H mm | ||||||||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm / Test data based on 220-240V |
 |
