CoC LED Lamps | Globe series |
  LG45 CoC (1.5W / 3W) |
  LG45 CoC (2W / 4W) |
| Model No. | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base |
| LG45 CoC | A++ | 150 lm | 1.5W | 2 pcs | 16W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E14 / E27 B22 |
| 250 lm | 2W | 2 pcs | 25W | |||||||||
| 300 lm | 3W | 4 pcs | 28W | |||||||||
| 470 lm | 4W | 4 pcs | 40W | |||||||||
| LG45 CoC | A++ | 150 lm | 1.5W | 2 pcs | 16W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~230V | 360° | No | E14 / E27 |
| 300 lm | 3W | 4 pcs | 28W | |||||||||
| LG45 CoC | A++ | 250 lm | 2W | 2 pcs | 25W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | No | E12 / E26 |
| 470 lm | 4W | 4 pcs | 40W |
Dimension |
|||||||||||||||||||
| Model No | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LG45 CoC (1.5W / 3W) | Ø45 x 80H mm | Ø45 x 72H mm | Ø45 x 70.5H mm | ||||||||||||||||
| LG45 CoC (2W / 4W) | Ø45 x 89H mm | Ø45 x 84H mm | Ø45 x 84H mm | Ø45 x 84H mm | Ø45 x 84H mm | ||||||||||||||
 |

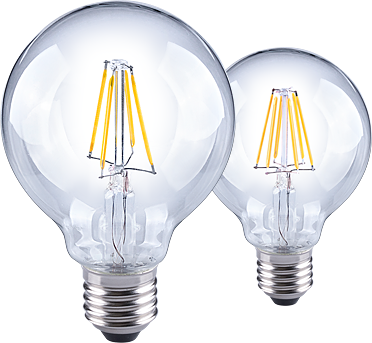

 LG80 CoC |

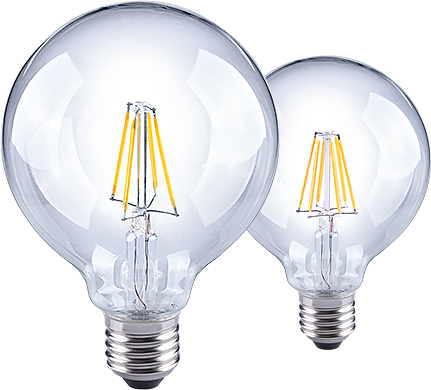

 LG95 CoC |
| Model No. | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base |
| LG80 CoC | A++ | 470 lm | 4W | 4 pcs | 40W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E27 |
| 640 lm | 5W | 4 pcs | 50W | |||||||||
| 810 lm | 6W | 6 pcs | 60W | |||||||||
| LG95 CoC | A++ | 470 lm | 4W | 4 pcs | 40W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E27 |
| 640 lm | 5W | 4 pcs | 50W | |||||||||
| 810 lm | 6W | 6 pcs | 60W |
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LG80 CoC | Ø80 x 115H mm | ||||||||||||||||||
| LG95 CoC | Ø95 x 135H mm | ||||||||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm / Test data based on 220-240V |
 |
