LED Retrofit Lamps | Reflector series |
 LR50 |
 LR63 |
 LR80 |
| Model No. | Energy Class |
Lumen | Wattage | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base |
| LR50 | A+ | 300 lm | 4W | 40W | 2700/ 3000/ 4000/ 6500K |
15000 hrs | ≥80 | 220~240V | 120° | No | E14 |
| LR63 | A+ | 480 lm | 6W | 60W | 2700/ 3000/ 4000/ 6500K |
15000 hrs | ≥80 | 220~240V | 120° | No | E27 |

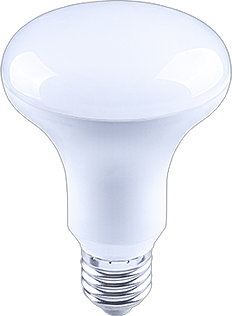

| LR80 | A | 800 lm | 10W | 100W | 2700/ 3000/ 4000/ 6500K |
15000 hrs | ≥80 | 220~240V | 120° | No | E27 |
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LR50 | Ø50 x 85H mm | ||||||||||||||||||
| LR63 | Ø63 x 100H mm | ||||||||||||||||||
| LR80 | Ø80 x 115H mm | ||||||||||||||||||
 |
 LBR30 |
 LPAR38 |
| Model No. | Energy Class |
Lumen | Wattage | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base |

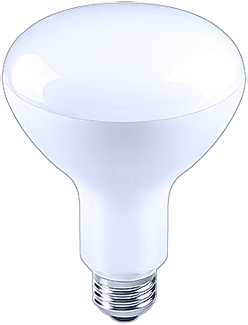

| LBR30 | A | 650 lm | 10W | 65W | 2700/ 3000/ 4000/ 6500K |
25000 hrs | ≥80 | 220~240V | 120° | Yes | E26 |
| 850 lm | 12W | 68W | |||||||||

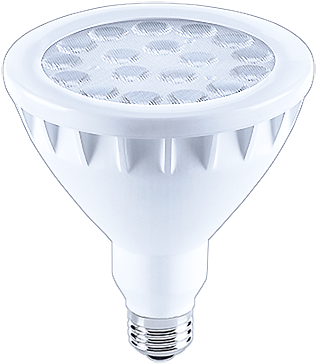

| LPAR38 | A | 760 lm | 12W | 67W | 2700/ 3000/ 4000/ 6500K |
25000 hrs | ≥80 | 220~240V | 30° | Yes | E26 |
| 1150 lm | 15W | 85W |
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LBR30 | Ø95 x 132H mm | ||||||||||||||||||
| LPAR38 | Ø122 x 131H mm | ||||||||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm / Test data based on 220-240V |
 |
